WE DO NOT CARRY THIS EHS CABLE. THERE WAS NOT A DEMAND FOR THESE PHONES IN THE US, SO WE DON’T NEED THE EHS CABLE. THIS ARTICLE IS GOING PS ONLY UNTIL FURTHER NOTICE.
For Snom? HECK YEAH! Here are the Snom phone models it works with:
COMPAT HAS NOT BEEN TESTED WITH SNOM PHONES, BUT IT IS MOST LIKELY 4.

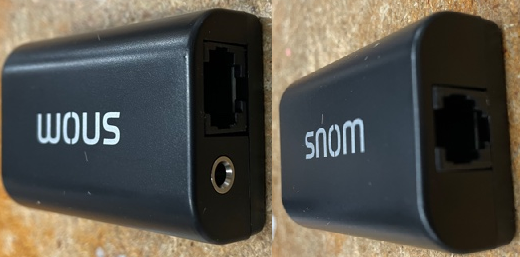

The Snom hookswitch comes with 2 separate cables, one will be in two pieces to be connected to a small box that says Snom and a second cord will be straight with no box.

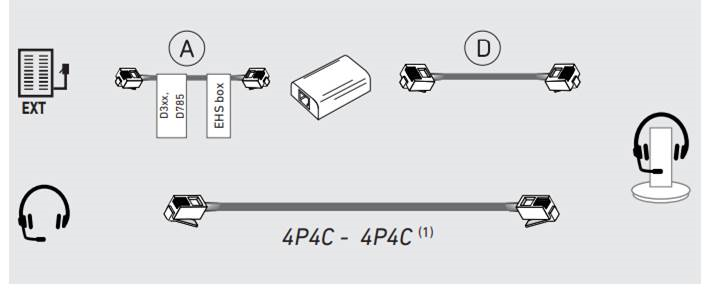

Here is how you set it up:
1) Before you start, unplug the power cable from the back of the base and set the RHL/DHSG button on the bottom of the Leitner wireless headset charging base to DHSG.
2) Start with the cable in pieces and the small Snom box. Connect the RJ45 end to the AUX JACK on the back of the Leitner wireless headset charging base (this is the largest jack in the center of the base) Connect the other end of this cable into the small Snom box. Connect the smaller end of this cable Snom box and the slightly larger end to the EXT Port of the Snom telephone. If this headset has expansion modules, then plug it into the last EXT port of the last expansion module.
3) Next get the cable without the box. Connect one side side of this cable to the TELEPHONE CONNECTOR jack in the back of the Leitner wireless headset charging base (this is the jack second to the left). Connect the other side of this cable to the HEADSET JACK of the Snom telephone.
4) Then, plug the power cable back in at the back of the base.
That’s it! You’re done!
